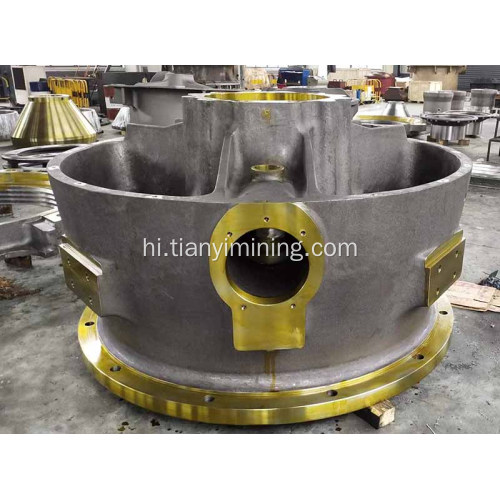

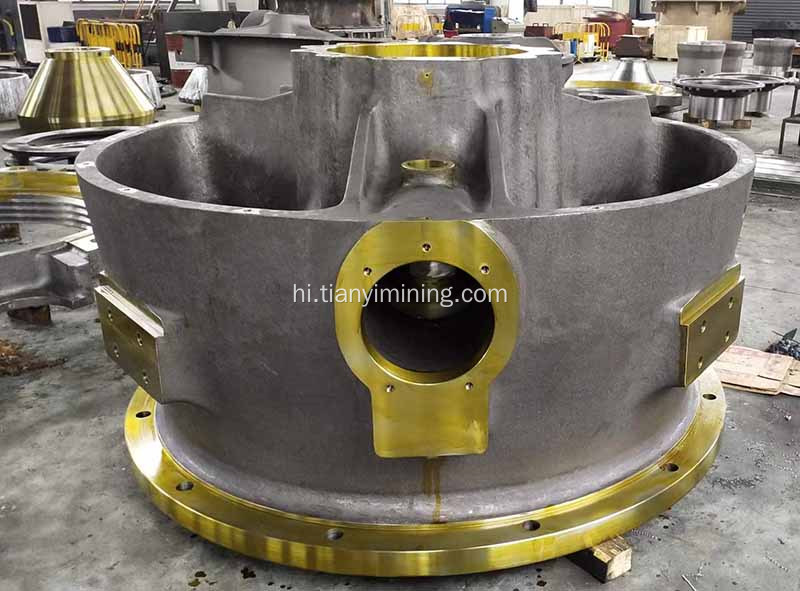

नीचे शेल निचला फ्रेम शंकु क्रशर स्पेयर पार्ट्स

Parts No.

Items

Remarks

Weight (kg)

576159

SHIM PLATES

/

1.6

583089

STRAINER

GP-LUB UNIT

7

583099

HYDR POWER UNIT

GP-LUB UNIT

54.09

583102

TEMP SENSOR

GP-LUB UNIT

2

908921

BRNG

GP200/S

1.7

909064

O-RING

GP200/S

0.04

909065

O-RING

GP200/S

0.06

909066

O-RING

GP200/S

0.06

909067

O-RING

GP200/S

0.09

909070

O-RING

GP200/S

0.06

912389

COVERING

G3310

34.8

932594

PROTECTION BUSHING

/

29.8

932867

NUT NUT

Tr270x12-8H

43.72

932880

PIPE

/

0.08

932886

PROTECTION PLATE

/

12.7

932952

SLIDE RING

/

25.2

932953

SEAL

/

2.53

932975

SPLASH GRD

GP200, POLYAMID PA6

1.002

933335

SPACER RING

/

1.9

933615

ECCENTRIC BUSHING

GP200 18/25

72.25

933638

TOP BRNG

GP200 18/25

32.08

934265

BOWL LINER PROTECTION

GP200 F

52.5

935879

PRESSURE SEALING

/

45

941535

THRUST BRNG

GP200S

47.5

942951

FRAME BUSHING

/

50.02

942969

O-RING

GP200/S

0.85

944415

LOW FRAME

GP200/S

2732.47

945072

CNTRSHFT ASSY

GP200/S

166.6

951756

HOSE

/

0.25

7001624006

WASHER

L-6-ZIN-NFE27-611

0.003

7002046007

ELBOW

ISO49-A4-1 1/4-ZN-A

0.4

7002415053

ADAPTER

GG106-NP20-24

0.42

7002422120

EQUAL TEE

G203102-20-20S

0.712

7002480756

THROTTLE

STC12/OD-21-01-03-05

0.31

404107470030

BOLT HEX

ISO4014-M36X170-8.8-UNPLTD

1.72

704404205200

CLAMP

DIN3017-SA77-95-W1

0.05

705501260605

V-BELT SET

ISO4184-8XSPC 2800

8.48

706300240300

DUIDING RING

PO-55-25150-5400-A

0.15

706300910002

PISTON SEAL

DIIN3760-AS115X140X12-FKM

0.4

949690808328

DRIVE GEAR PAIR

G3310 908083 JA 908085

106

MM0215905

SHAFT SEAL

DIN3760-AS115X140X12-FKM

0.07

MM0223580

POWER SOURCE

QUINT-PS-3X400-500AC/24DC

1.4

MM0272762

ARM GRD

GP200/S

40.22

MM0301491

BRNG

GP200/S

10.73

MM0315432

CNTRSHFT ASSY

GP200/S

166.05

MM0524454

BRNG

GP200/S

9.78

MM0531018

BRNG

GP200/S

1.6

N01521002

CAP SCRW HEXCKTHD

DIN7984-M10X25-8.8-UN

0.019

N02125056

THERMOSTAT KPS

79 060L312166

0.882

N02125794

HTR

59484 6000W/480V 2W/CM2

6

N02125883

MSR ADAPTER

1-906-29-11-010,R1/4

0.1

N02149024

COUPLING HOUSING

TH2-101A

0.5

N02152933

HYDR PUMP

P197086KAZA20-32

19

N02152936

HYDR PUMP

AP200/11-D-218

2.33

N02154075

COOLER

T6.1626.063.X009

29.5

N02154752

PROTECTION PIPE

OD15X75MM,060L3262

0.05

N02445012

MANOMETER

6308 PBL 060

0.25

N02445013

MANOMETER

6305 RL 025

0.25

N02445014

MANOMETER VALVE

HB1-PA

0.35

N02445071

PRESSURE RELIEF VALVE

VSP-150 0.412.04-0

0.28

N02445174

CARTRIDGE VALE

OD.15.05.21-37-00 VEI-8A

0.35

N02445183

CRTDG VALVE

VU-C-12 OD.42.01.00.05-01

0.32

N02445187

VALVE BLOCK

OFF15912NE0000

4.1

N02445315

SEAL

USIT-4 R1/4

0.005

N02445792

FILTER CRTRDG

RH 150 MS 1

1

N02445793

FILTER CRTRDG

CH 302 FV 1 1

0.33

N02445810

CLOGGING IND

IND.008.0075.2 2BAR 30C

0.08

N02445980

FILTER ASSY

SPM302FV1CB503XX

2.2

N02445983

FILTER ELEMENT

CS 10 AN

1.2

N02480709

COIL

OD.02.11-01-30-OC, 24VDC

0.18

N02480817

PRESSURE

SW 060-3104,KPS33,0.6BAR/0

1

N02701132

O-RING

69.85X3.53-NBR70,80641195000

0.005

N03460525

COUPLING

AK2-PP-65/K-65/AK28-MP-65

0.7

N03460609

SPACER

K-90

0.06

N05227008

ELECTRIC

PIN,MALE MVSTBR2,5/4-ST-5,08

0.001

N05256691

CNNCTN ITEM

GV2-AF3

0.016

N05256975

FUSE BASE

ST 4-FSI/C, 3036372

0.021

N05428751

SQUIRR CAGE MOTOR

K21R 100L4 2.2KW/1500

23.5

N05428752

SQUIRR CAGE MOTOR

K21R 80G8-4L 0.18/0.7

12

N11933947

MANTLE

F/M/EC

479.27

N11933948

BOWL LINER

SPECIAL F

481.78

N11933949

BOWL LINER

M

653.51

N11934264

INTERMEDIATE CONE

GP200 F&M,20MN5

206

N11942003

MANTLE

EF

466.4

N11942004

BOWL LINER

EF

428.15

N11944214

BOWL LINER

F

568.99

N11944215

BOWL LINER

EC

619.43

N11951220

BOWL LINER

MC

600.77

N44450224

HYDR HOSE

5723-20-16/SAE100R2T-16/5705-1

9

N44460458

HYDR HOSE

JF-12/EN857-2SC-12/45JF-12/L88

1

N44460461

HYDR HOSE

JF-20/EN853-1SN-20/45JF-20/L45

1.2

N44460464

HYDR HOSE

JF-20/EN853-1SN-20/JF-20/L720

1.5

N44460963

HOSE

JF-06/EN857-2SC-04/JF-06/L350

0.23
