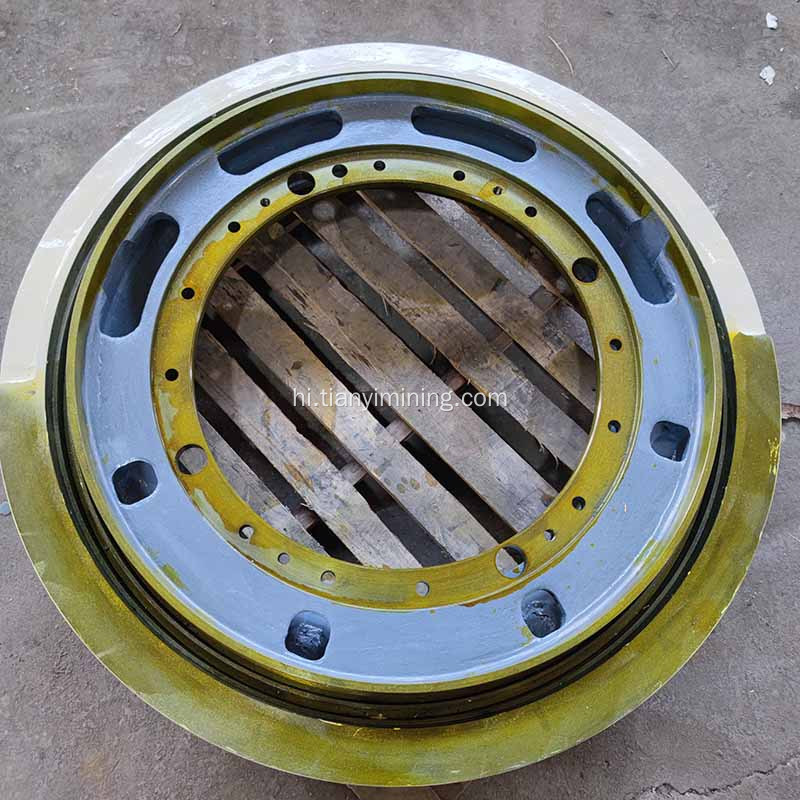

HP300 कोन क्रशर सनकी काउंटर वेट

Parts No.

Items

Remarks

Weight (kg)

Parts No.

Items

Remarks

Weight (kg)

1001699045

DIRECTIONAL VALVE

654011-DO3-115DF10

1.81

7022102500

CNTRSHFT GRD

/

11.3

1001699046

DIRECTIONAL VALVE

6553-DO3-115/DF10

1.813

7022102501

CNTRSHFT GRD

/

32

1002076431

ADAPTER

GF1010-0408S

0.06

7022102502

ARM GRD HP300

/

30

1003063296

SQUARE NUT

10-ACIER-NFE25540-UNPLATED

0.01

7023508200

BOWL

/

1780

1003086066

WASHER LOCK RIBBED

BN792-M10-MECHANICAL

0.1

7024950500

HEAD BALL

/

60

1003396060

SPRING PIN

ISO8750-12X24-ST

0.2

7027009529

SAFETY BLOCK

/

2

1003801503

GREASE FITTING

/

0.1

7029500508

SUPPORT OIL COOLER

/

59.4

1012362975

SUPPORT

/

40

7030164586

FRAME COMPONENT

/

838.1

1013301442

FLAT BAR

/

0.7

7030165306

MOTOR SUPPORT PEINT

/

494.4

1019578065

SQUARE HEAD BOLT

M30.80/75

1

7033100015

OIL FLINGER

/

13

1022063300

CNTRSHFT BUSHING

/

12.6

7034360028

FLOAT SW

/

0.5

1022073307

ECCENTRIC BUSHING INNER

/

49.5

7034401000

ANGLE BAR

25X25X3 LG.40

0.1

1022130525

BUSHING

/

1.25

7035800600

SOCKET LINER

/

47

1022145801

HEAD BUSHING UPR

/

14.8

7035912251

COVER PLATE

/

5.4

1022145975

HEAD BUSHING LOW

/

48

7035912253

HOUSING

/

12

1022815005

ADJUSTMENT CAP

/

390

7039608250

SOCKET

/

56

1036833868

PINION

/

40

7039608251

SOCKET

/

56

1036833869

DRIVE GEAR

/

95

7041068005

BOLT LOCK

/

24

1037711893

PISTON HEAD

/

30

7043358003

ECCENTRIC

/

284

1038018155

CNTRWGHT LINER

/

103

7043358008

ECCENTRIC

/

270

1038062922

ARM GUARD

/

40

7044453104

HYDR HOSE

HP 9,5 L=14000

10.4

1044180281

FEED HOPPER LOW

/

96

7046000000

FRAME RING

/

5.3

1047098031

SHAFT KEY

/

1.2

7046600100

MEASURING TOOL THREAD WEAR GAUGE

/

0.6

1048514410

FRAME SEAT LINER

/

18

7047811500

SLIDE

/

9.2

1048722782

SOCKET LINER

/

45

7047811506

SLIDE ASSY

/

85

1050214187

ELECTRIC MOTOR

5HP/1500RPM/184T FRM/415V

0

7053001003

SEAL

/

0.1

1050214635

ELCTRC MOTOR

10HP/1750RPM/CM-3313T/230-

0

7053001004

SEAL

/

0.1

1050230065

HYDR MOTOR

/

10

7053140013

SEAL

/

0.2

1051495225

NUT SPHERICAL

HM72

2.5

7053200006

O-RING

327X10

0.2

1054268497

AXLE

/

4.8

7065012041

CLAMPING BAR

/

0.5

1054350025

MAIN FRAME PIN

/

4.1

7065012051

CLAMPING BAR

/

1.3

1055981151

FEED CONE

/

32

7065558093

FEED CONE

/

17

1056839413

NUT-LOCK

U C/PL.48

0.6

7065558094

FEED CONE HP300

/

17

1057602250

THRUST BRNG LOW

/

19

7065900049

SUPPORT

/

13

1057612200

THRUST BRNG UPR

/

19

7070001009

ADAPTER

/

0.5

1059423011

OIL PUMP

P/N PF-2012-2801

0

7070002900

ADAPTER

/

2.5

1061030431

PLANETARY DRIVE

/

36

7080200502

PROTECTIVE BELLOWS

/

0.3

1061340015

SUPPORT

/

0.3

7080500401

SUPPORT

/

7.8

1061871854

ADJSTM RING

/

1771

7080500476

SUPPORT

/

0.2

1061873757

CLAMPING RING

/

290

7080500491

SUPPORT

/

0.2

1062440045

DRIVE GEAR

/

437

7081108004

DUST SHELL

/

77

1062807491

OIL FLINGER

/

13

7082404300

HEAD HP 300

/

1100

1063192845

WEAR RING

/

0.3

7082652000

THREADED ROD

M16 L=200

0.3

1063518725

SEAL RING

/

2

7084102112

PROTECTION PLATE

/

4.5

1063519182

SEAL

/

1.7

7085728250

CONICAL HOPPER

/

211.6

1063914652

TORCH RING

/

5

7086124754

TUBE

4″ LG.505

7.4

1063917418

BOWL ADAPTER RING

/

65

7086300767

HOSE

D20X30L=1900

0.9

1064666515

ROTECTION PLATE

/

2

7086401502

HOSE

8/16 LG.1150

0.8

1065634305

ROD

/

27

7086401750

HOSE

12/16 LG.450

1.1

1068633366

CNTRSHFT

/

94

7086402014

HOSE

1″1/4 L.1630

2.7

1070587737

SHIM 0,5

/

0.2

7086402017

HOSE

20/16 LG.1365

2.2

1070587738

SHIM 0,8

/

0.5

7086402018

HOSE

1″ 1/4 LG: 4000

5

1070587739

SHIM

/

1

7086402021

HOSE

1″1/4 LG.760

1.8

1073044083

SPACER TUBE

/

0.6

7086402023

HOSE

1″ 1/4 LG: 6000

7

1073044084

SPACER TUBE

/

0.3

7086402024

HOSE

1″ 1/4 LG: 8000

9

1073811444

SOCKET

/

57

7086402557

HOSE

1″1/2 L= 810

2.6

1074599969

BACKING COMPOUND

/

10

7086403765

HOSE

4″ LG.6000

27

1080960103

LIFTING PLATE

/

14.8

7090008015

MAIN FRAME ASSY STD

/

4724.6

1086342700

WEDGE

/

2

7090018004

CNTRSHFT ASSY STD POSITION BUSHING AT 6

/

355.1

1093030107

ROD ASSEMBLY

/

39.7

7090048101

SOCKET ASSY STD

/

104

1093030108

TRAMP RELEASE CYL

/

120.8

7090058000

HEAD ASSY STD

/

1183

1093030109

SEAL KIT

/

0.5

7090058005

HEAD ASSY

/

1189

1093030211

DRIVE UNIT ASSY HYD DRIVE ASSY /ECN

/

67

7090158011

TRAMP RELEASE ASSEMBLY

/

862.8
